Raw Material: Sulphoaluminate cement clinker, Portland cement, metakaolin, lime and gypsum

Input Size: < 1mm

Moisture: < 5%

Capacity: 30000Tons/Year

Application: The finished product would be used as slurry and filling material. Equipment: SCM1250 superfine mill and the auxiliary machines

Project Profile

Shanxi Jincheng Anthracite Mining Group Co., LTD., a state-owned company, purchased a complete set of equipment for anchoring agent production. It is an approval of our brand influence on the one hand and a trust in our SCM1250 Superfine Mill and related auxiliary equipment. The cooperation deepens the mutual trust and win-win between us.

The new complete set of equipment for anchoring agent production takes centralized control system and can achieve automatic production as well as automatic trouble removal. The operation is quite easy.

Requirements of Production

1. No grinding: The raw material of anchoring agent is weighed and distributed by weighing system and then the material enters the agravic mixing system for mixture. Finally, the finished product is sent by pneumatic conveying system to the tank for storage and transported away after being packaged.

2. Ground by mill: The raw material of anchoring agent is weighed and distributed by weighing system and then the material enters the agravic mixing system and the mixture is then sent to the grinding system to be ground and classified. Finally, the finished product is sent by pneumatic conveying system to the tank for storage and transported away after being packaged.

Configuration of Production Line

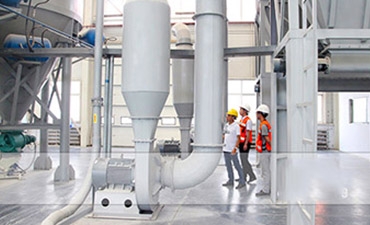

Different from typical configuration, the configuration of production line provided was improved according to customer’s demands. The main machine was SCM1250 superfine mill and the auxiliary machines include spiral conveyor, powder packaging machine and pneumatic conveyor. This configuration totally met the requirement of production technology of anchoring agent.
